Boxes

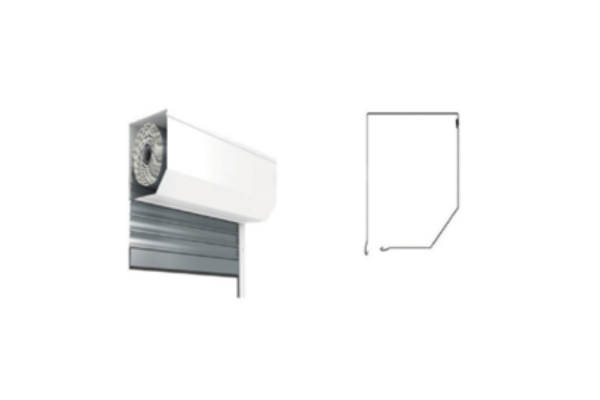

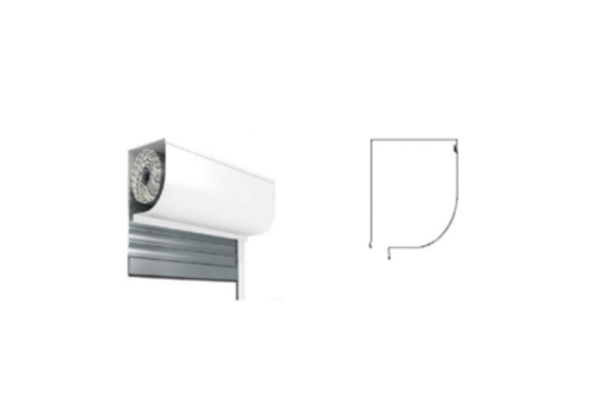

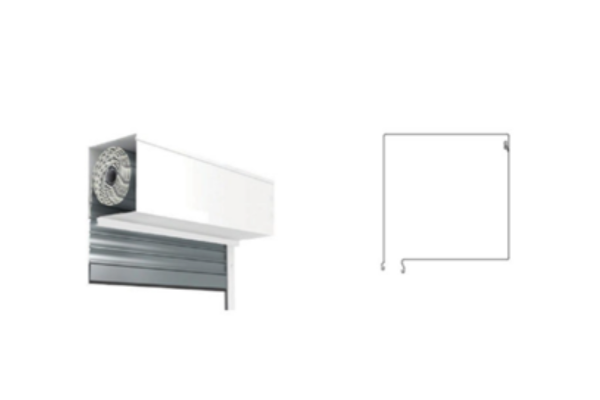

Aluminum boxes sizes 150 to 400mm, with different types of fronts 90, 45, degree and. Round Box.
Shutter Boxes: They are the upper part of the system, available in both concealed and surface-mounted types, where the shutter motor and mechanism are installed. Surface-mounted boxes are made of aluminum sheets.
| Schedule of selection of tube and box | ||||||
|---|---|---|---|---|---|---|
| SLAT | TUBE | MAX-W | MAX-H | W-SQM-KG | MAX-H | BOX SIZE |
| 39MM | 40-60 | 2.5 | 2.7 | 2.56 | 2.25 | 15 |
| 2.70 | 16.5 | |||||
| 41MM | 60 | 3 | 2.9 | 2.68 | 1.25 | 15 |
| 1.75 | 16.5 | |||||
| 2.25 | 18 | |||||
| 2.90 | 20.5 | |||||
| 55MM-ECO | 60-70 | 3.5 | 3.25 | 2.25 | 1.25 | 15 |
| 1.50 | 16.5 | |||||
| 2.25 | 18 | |||||
| 2.75 | 20.5 | |||||
| 3.25 | 25 | |||||
| 55MM | 60-70 | 4 | 3.5 | 2.68 | 1.25 | 16.5 |
| 1.50 | 18 | |||||
| 2.25 | 20.5 | |||||
| 3.50 | 25 | |||||
| 77MM | 70-102 | 6 | 4 | 3.95 | 1.00 | 20.5 |
| 1.75 | 25 | |||||
| 2.75 | 30 | |||||
| 4.00 | 35 | |||||
